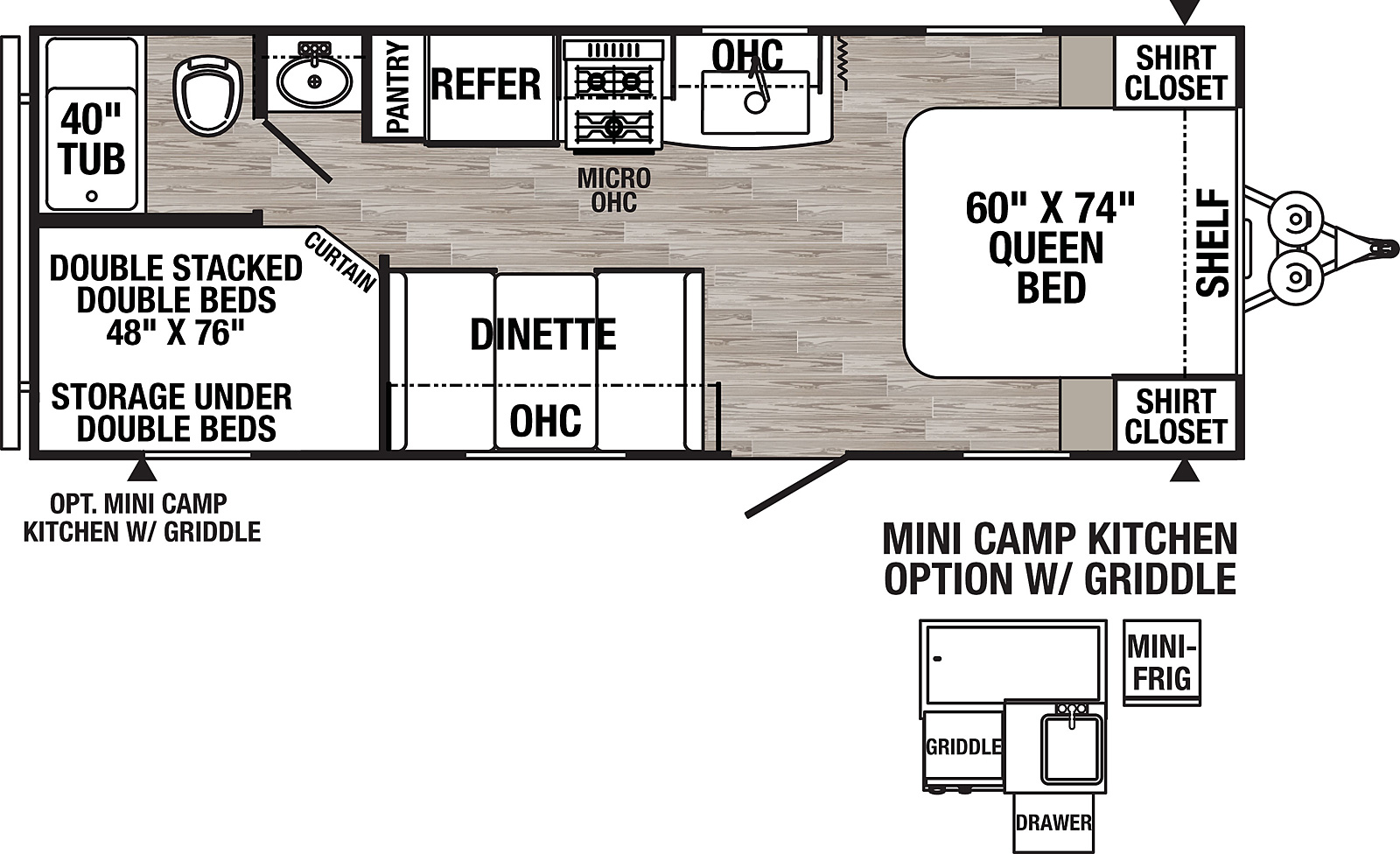

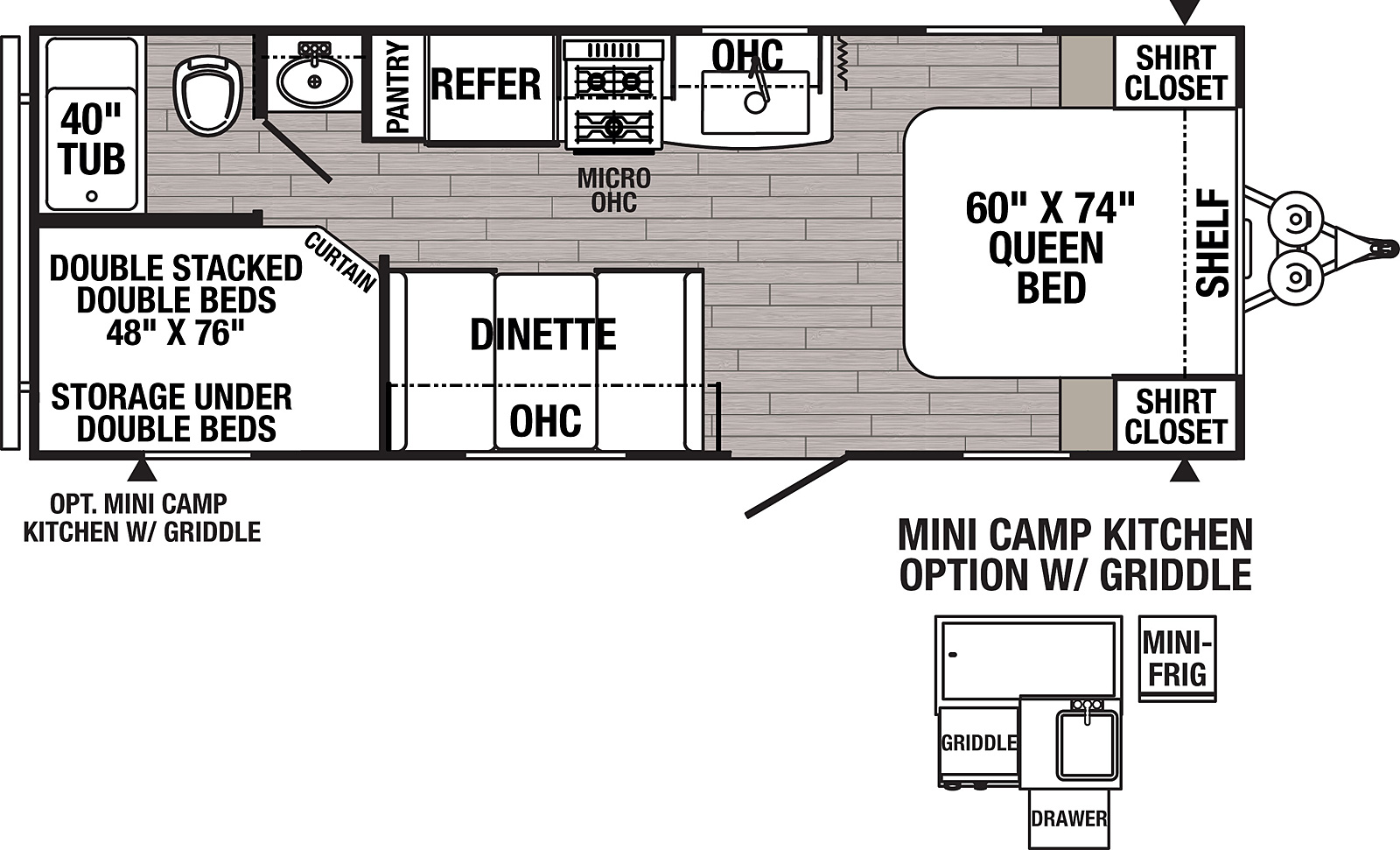

22RBC Floorplan

Travel Trailers

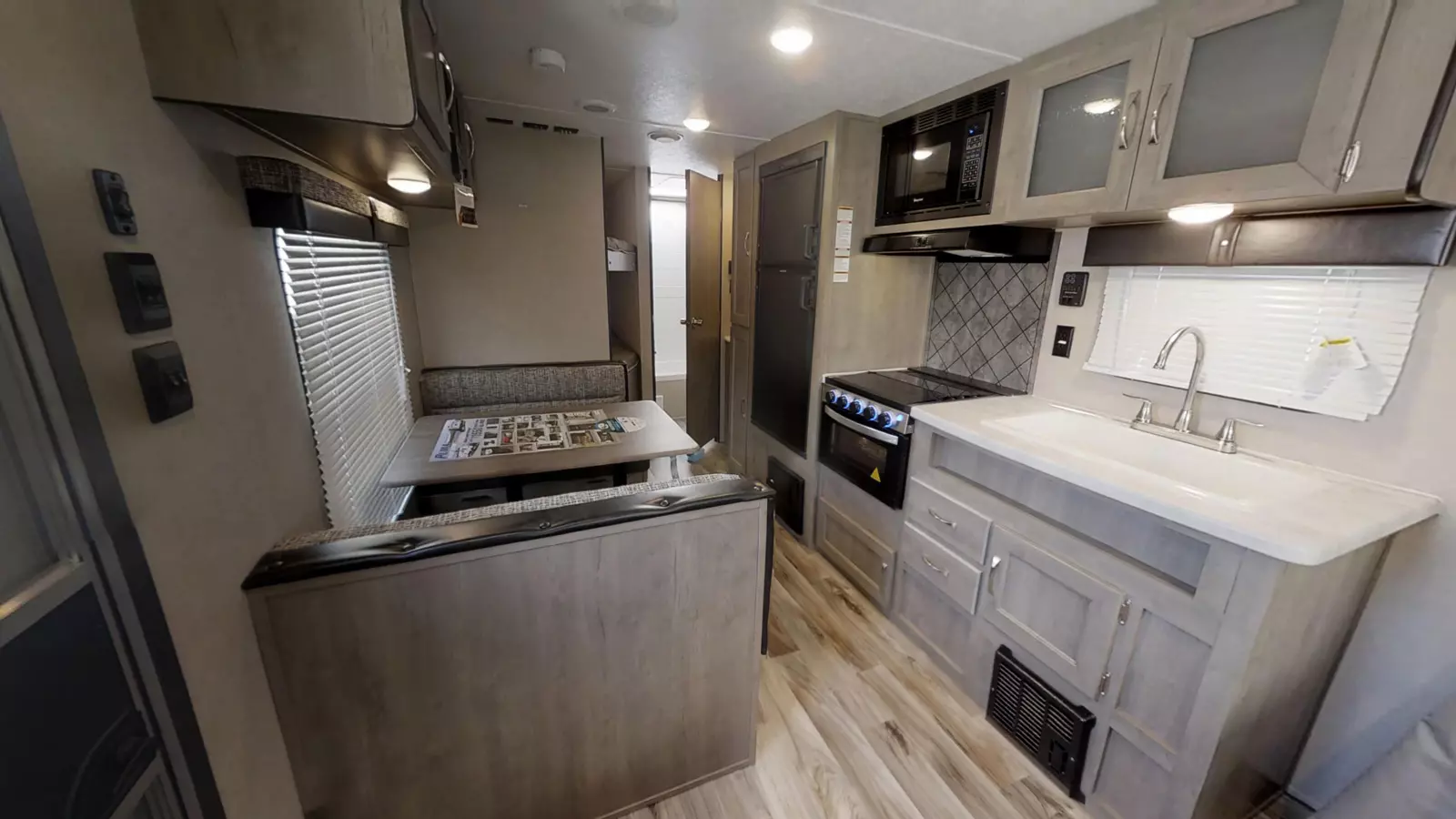

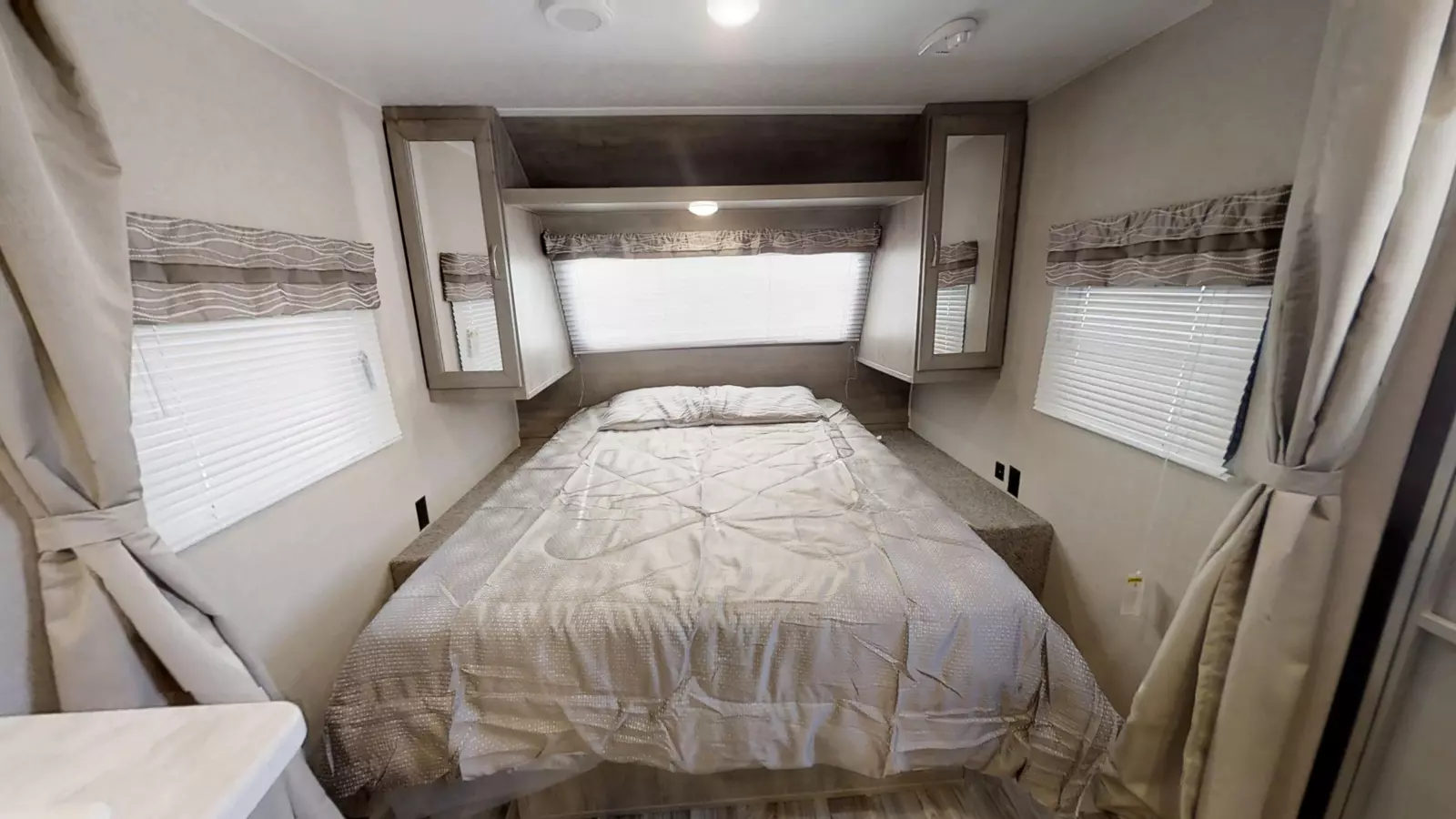

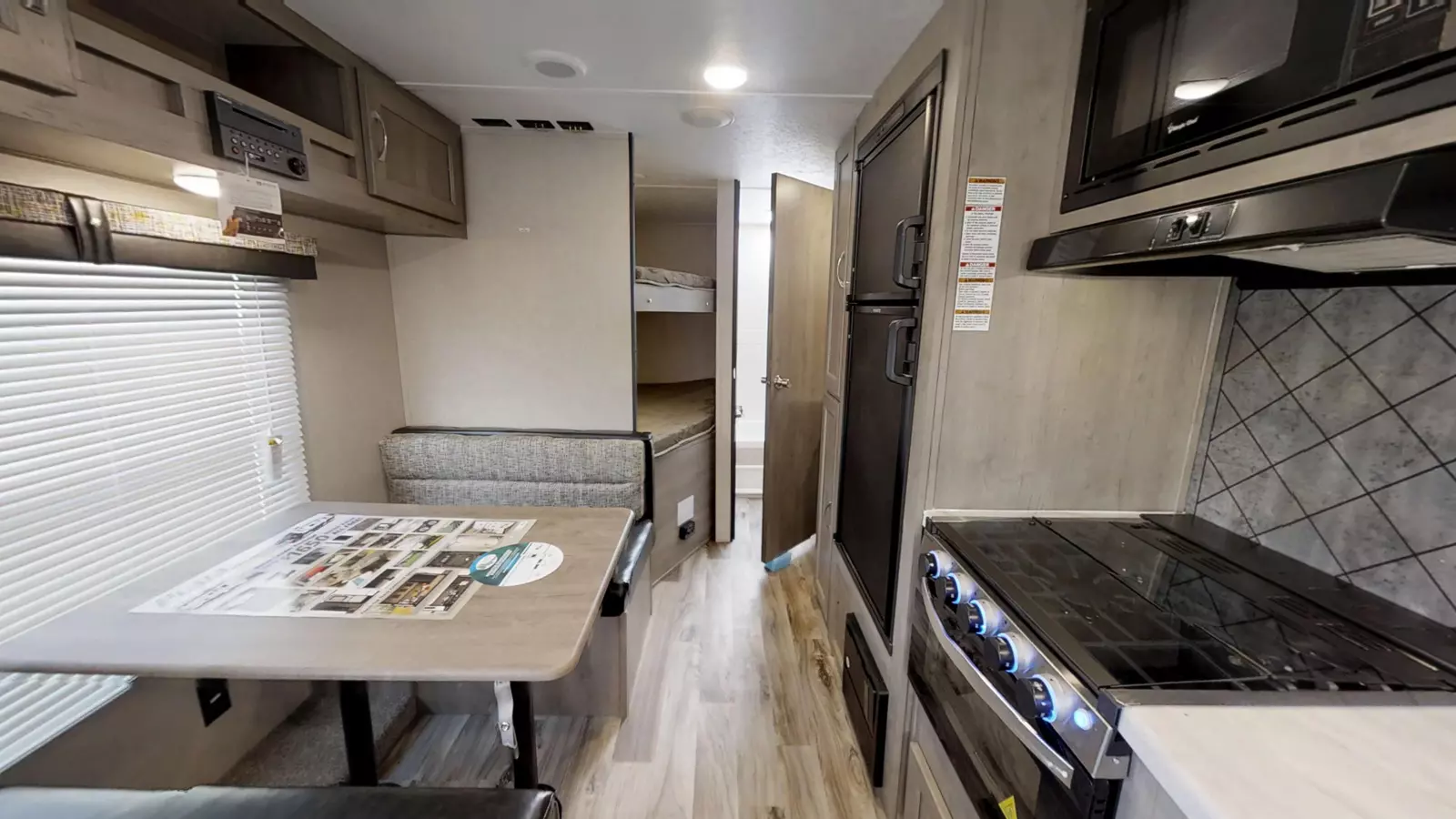

The 22RBC has no slide outs. Exterior features include a 10 foot awning and a mini camp kitchen with griddle. Interior layout from the front to back: queen bed with two shirt closets; kitchen with microwave, cooktop stove, refrigerator and pantry; booth dinette; full bathroom; double stacked bunk beds.
Enlarge

Specifications

Hitch Weight:
435 lb.
GVWR:
5,800 lb.
UVW
4,243 lb.
CCC
1,557 lb.
Exterior Length:
26' 0"
Exterior Height:
10' 2"
Exterior Width:
96"
Fresh Water:
43.00 gal.
Gray Water:
34.50 gal.
Black Water:
34.50 gal.
Awning Size:
10'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.



Video Tour

Get an alert when a video tour is added.


Features & Options

  • Friction Hinged Radius Entry Doors
  • Smooth, Radius Front Metal with Diamond Plate
  • Large Front Frameless Window (Most models)
  • Powder Coated Frames
  • Super Lube Axles
  • Tinted Safety Glass
  • Clamp Ring Windows
  • Pass-Thru Storage (Where applicable)
  • AlphaPly Roofing Membrane w/Limited Lifetime Warranty
  • Rain Gutters with Large Drop Spouts
  • ABS Automotive Style Fender Skirts
  • Radius Baggage Doors
  • Clamp Ring Luggage Doors
  • Darco Wrapped Underbelly
  • 5/8" Araucoply Plywood Floor Decking (25 Year manufacturer’s limited warranty)
  • 2" x 3" Flush Floor Joists on 12" Centers
  • 2-20 Lb. Gas Bottles
  • Rack & Pinion Electric Slide System with Manual Override (Large models)
  • Schwintek Slide System with Manual Override (Small models)
  • Back-up Camera Prep
  • Solar Prep
  • 80" Interior Height (Large models)
  • 78" Interior Height (Small models)
  • USB Charging Ports
  • Floor Ducted Heat (Most models)
  • Decorative Kitchen Backsplash
  • Spice Rack (Kitchen)
  • Divided Silverware Drawer
  • Nickel Finish, Single Control Gooseneck Kitchen Faucet
  • Undermount Stainless Steel Sink
  • Glass Range Cover
  • Built-in Knife Rack
  • LED Ceiling Lights
  • 55 Amp Converter with Battery Charger
  • Jack Knife Sofa with Pull-down Center Drink Tray – Storage Underneath (Most models)
  • Wood Medicine Cabinet with Mirrored Door
  • Power Vent in Bath
  • Glass Shower Door (select models)
  • 12V Shower LED Light
  • 60” x 74” Queen Beds
  • Upgraded Soft Teddy Bear Bunk Mats
  • Shirt Closet in Front Bedrooms
  • Two Interior Decors
  • Satin Nickel Hardware, Light & Bath Fixtures
  • Square Dinette Seat Bases with Storage
  • Residential Carpet with Pad
  • Designer Window Treatments (Living room)
  • Carbon Monoxide Detector
  • LP Leak Detector
  • Fire Extinguisher
  • Smoke Detector
  • Tub Surround
  • Bedspread with Pillows
  • TV Antenna with Cable Hook-up
  • Tinted Windows
  • Super Lube Axles
  • Front & Rear Stabilizer Jacks
  • Beauflor Linoleum
  • Bath Skylight
  • LED Lighting
  • Bedroom TV Hook-up
  • WiFi Prep
  • Solar Prep
  • Electric Awning
  • Oven & Range Hood
  • Stainless Steel Microwave
  • AM/FM/Bluetooth Stereo
  • 2 Exterior Speakers
  • Outside Shower
  • Spare Tire
  • Front Diamond Plate
  • 13,500 BTU Ducted A/C
  • 6 Gal. Gas/Electric Water Heater
  • Night Shades
  • Aluminum Solid Steps
  • 11 Cu. Ft. Residential Refrigerator
  • 4 Electric Stabilizer Jacks
  • 3500 lb Electric Tongue Jack
