Real-Lite Mini Travel Trailers

A brand new product by Palomino, the Real-Lite Mini is sure to amaze. The Real-Lite Mini has many standard features including laminated roof, maple hand glazed cabinets, LED interior lighting, ball bearing drawer guides and much more. Find the one that is right for you!

Care Camps, fighting cancer and making memories

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications










to

to




Floorplans

Print


Lite Travel Trailers

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

RL184

RL184


Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

RL186

RL186


Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

RL188
Has Gallery Photos Has 360 Tour

RL188


Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

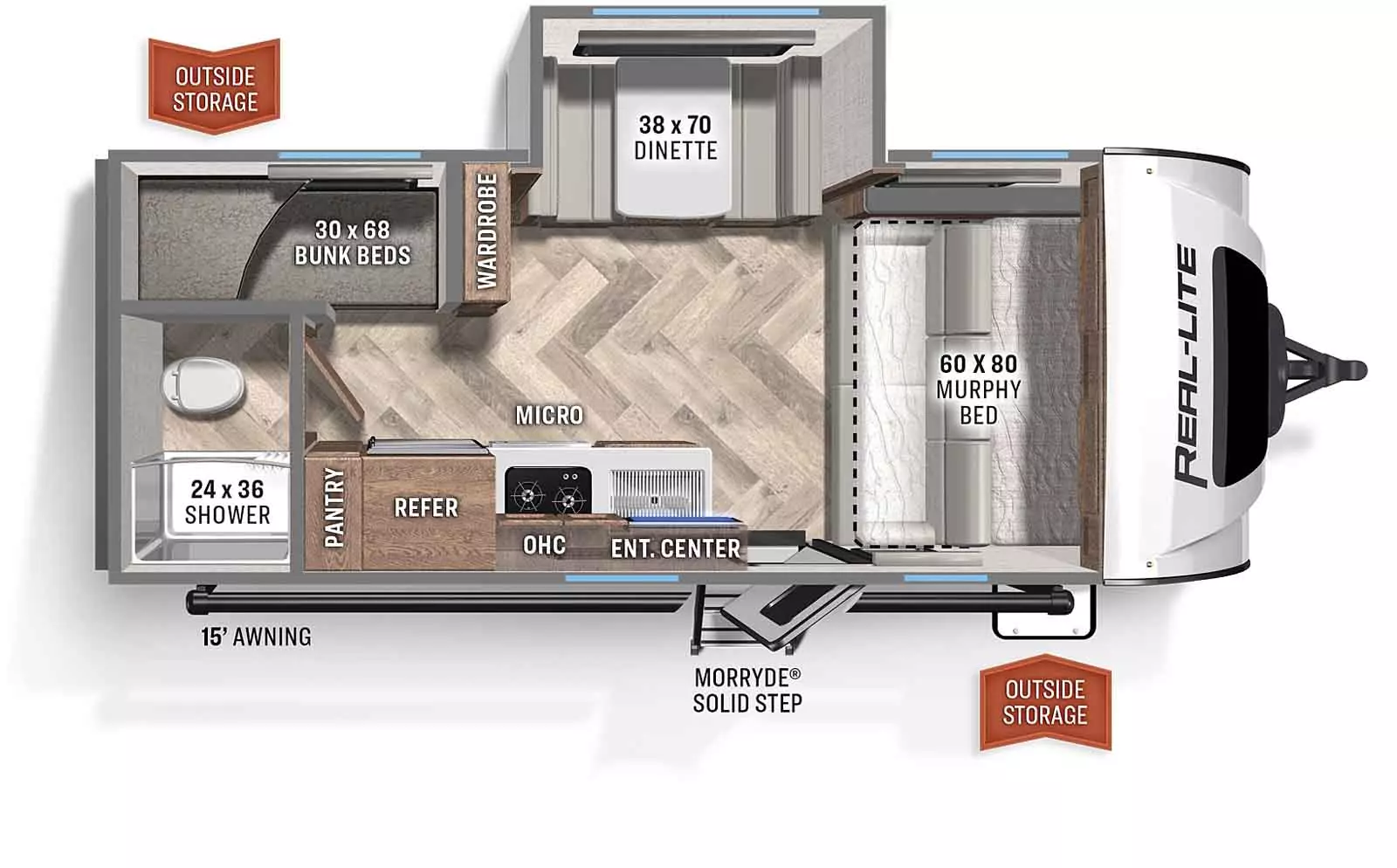

RL189

RL189




Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
505 lb.
4905 lb.
3754 lb.
1151 lb.
21' 9"
10' 3"
90"
44.00 gal.
30.00 gal.
38.00 gal.
14'
505 lb.
4905 lb.
3974 lb.
931 lb.
21' 9"
10' 3"
90"
44.00 gal.
30.00 gal.
38.00 gal.
14'
505 lb.
4905 lb.
3584 lb.
1321 lb.
22' 11"
10' 3"
90"
44.00 gal.
30.00 gal.
38.00 gal.
15'
545 lb.
4945 lb.
3849 lb.
1096 lb.
22' 11"
10' 3"
90"
44.00 gal.
30.00 gal.
38.00 gal.
15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.

Features & Options

Print
  • Aluminum Wheels
  • Power Awning w/LED light
  • Dexter torsion axle
  • Hi Gloss White Exterior
  • 4 stabilizer jacks
  • Spare Tire
  • 1-20 lb. LP tank
  • 13,500 BTU air conditioner
  • AM/FM Bluetooth Stereo
  • Ball bearing drawer guides
  • 2 burner cook top
  • Microwave
  • Maxx Air vent
  • Carbon Monoxide detector
  • Solar Prep
  • LED interior lighting
  • Laminated roof
  • Front Cap with windshield and Line X Protectant
  • 10 cubic foot 12 Volt refrigerator
  • Azdel ® construction
  • Porcelain Toilet
  • Hot Water – 6 gal.
  • 24” TV
  • 8 cubic foot gas/electric refrigerator
  • 11,000 BTU low profile air conditioner
  • Fireplace
  • Solid surface countertops
  • Electric Tongue Jack
  • Frameless windows
  • RVQ grill w/bumper mount
  • Roof Ladder
  • Solar Panel
  • Thule Roof Rack
  • Adds 4" to exterior height
  • 15” Aluminum wheels
  • 28” mudder tires
  • Lift kit
  • Flared fenders
  • Assist rail
  • Solar panel
  • Roof Rack
  • Roof ladder

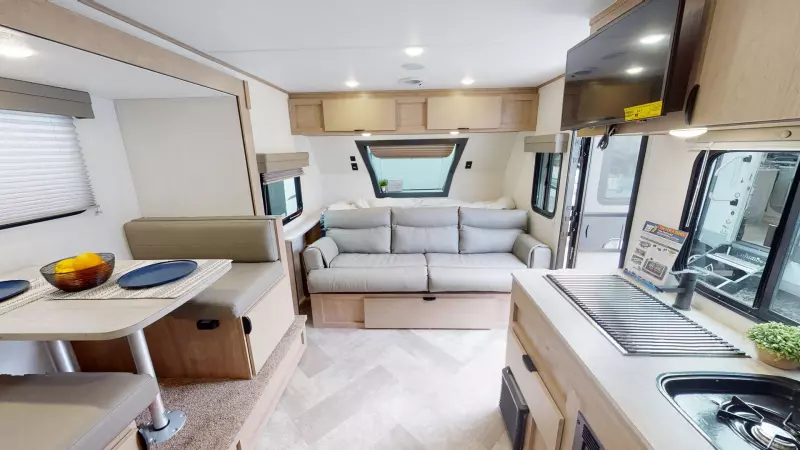

Virtual Tours
