185X Floorplan

Temporarily Unavailable

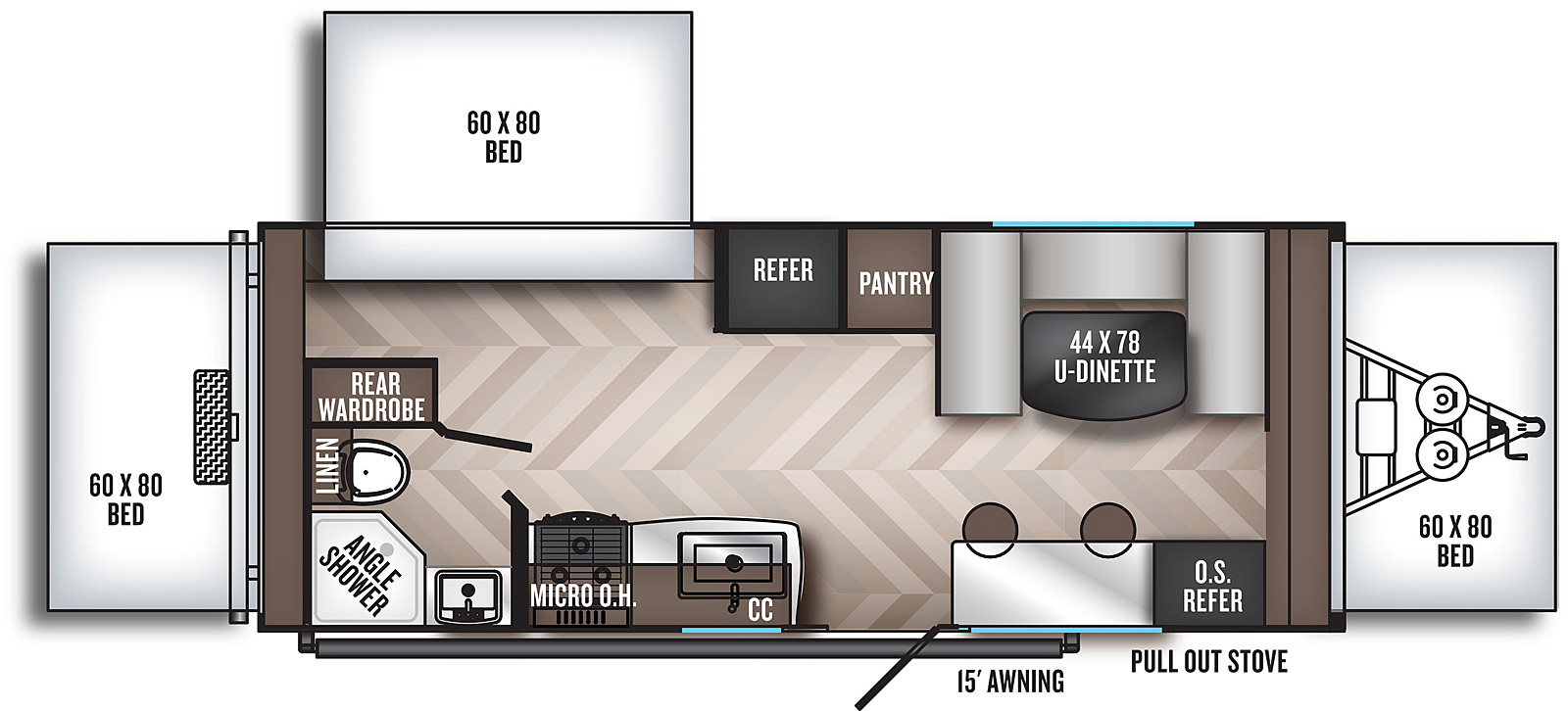

SolAire eXpandable 185X floorplan. The 185X has no slide outs and one entry door.
Enlarge

Specifications

Hitch Weight:
444 lb.
GVWR:
5,630 lb.
UVW
4,134 lb.
CCC
1,496 lb.
Exterior Length:
25' 9"
Exterior Height:
10' 1"
Exterior Width:
96"
Fresh Water:
44.00 gal.
Gray Water:
38.00 gal.
Black Water:
30.00 gal.
Awning Size:
15'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.



360 Tour

Get an alert when a 360 tour is added.


Video Tour

Get an alert when a video tour is added.


Features & Options

  • Power Awning w/LED Lights
  • Dexter Tor-Flex Torsion Axles
  • Furrion HDMI DVD/Bluetooth/HDMI Stereo
  • Power Tongue Jack
  • 13,500 BTU Ducted A/C
  • Tub Surround w/Skylight
  • Ball Bearing Drawer Guides
  • Microwave
  • Slam Latch Baggage Doors w/Magnets
  • Black Tank Flush
  • Solid surface counter tops
  • Stainless Steel kitchen sink with roll cover
  • Aluminum wheels
  • White gel coat fiberglass
  • LED Interior and Exterior Lights
  • USB Ports
  • Roller Shades
  • 11 cubic foot Electric Refrigerator
  • Tire Pressure Monitoring System
  • Maxx Air Vent
  • Heated Bunk Mats
  • Glass Top Flush Mount Range
  • Air conditioner upgrade - 15,000 BTU
  • 24” LED TV
  • Heated Holding Tanks
  • RVQ Bumper Mount Grill
  • 8 cubic foot Gas/Electric Refrigerator
  • WiFi Booster
