Columbus and Compass Fifth Wheels

Explore new places off the beaten path. Share the sites you knew as a kid with your own family. Designed with the insights of a seasoned Fifth Wheel enthusiast, the Columbus is distinctively styled with residential details.

Columbus plant tours every Tuesday at 2PM.



Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications










to

to




Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
2134 lb.
14107 lb.
11107 lb.
3000 lb.
36' 3"
12' 4"
101"
75 gal.
78 gal.
39 gal.
16 ft
2269 lb.
14298 lb.
11298 lb.
3000 lb.
36' 3"
12' 4"
101"
75 gal.
71 gal.
39 gal.
16'
2086 lb.
14457 lb.
11457 lb.
3000 lb.
38' 1"
12' 4"
101"
75 gal.
71 gal.
39 gal.
17'
1779 lb.
14540 lb.
11540 lb.
3000 lb.
39' 6"
12' 4"
101"
75 gal.
71 gal.
39 gal.
18' & 11'
2357 lb.
15785 lb.
12785 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
71 gal.
78 gal.
16'
2283 lb.
15609 lb.
12609 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
71 gal.
39 gal.
20'
2184 lb.
15990 lb.
12990 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
71 gal.
39 gal.
10' 6" & 20'
2417 lb.
15557 lb.
12557 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
78 gal.
78 gal.
11' & 12'
2769 lb.
16138 lb.
13138 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
75 gal.
39 gal.
20'
2169 lb.
14422 lb.
11422 lb.
3000 lb.
36' 3"
12' 4"
101"
75 gal.
78 gal.
39 gal.
16 ft
2309 lb.
14859 lb.
11859 lb.
3000 lb.
36' 3"
12' 4"
101"
75 gal.
71 gal.
39 gal.
16'
2035 lb.
14962 lb.
11962 lb.
3000 lb.
38' 1"
12' 4"
101"
75 gal.
71 gal.
39 gal.
17'
1913 lb.
15196 lb.
12196 lb.
3000 lb.
39' 6"
12' 4"
101"
75 gal.
71 gal.
39 gal.
18' & 11'
2276 lb.
16276 lb.
13523 lb.
2753 lb.
42' 1"
12' 4"
101"
75 gal.
71 gal.
78 gal.
16'
2378 lb.
16006 lb.
13006 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
71 gal.
39 gal.
20'
2251 lb.
16251 lb.
13826 lb.
2425 lb.
42' 1"
12' 4"
101"
75 gal.
71 gal.
39 gal.
10' 6" & 20'
2632 lb.
16164 lb.
13164 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
78 gal.
78 gal.
11' & 12'
2751 lb.
16593 lb.
13593 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
75 gal.
39 gal.
20'
2422 lb.
14636 lb.
11636 lb.
3000 lb.
37' 7"
12' 4"
101"
75 gal.
78 gal.
39 gal.
16'
2214 lb.
14369 lb.
11369 lb.
3000 lb.
37' 7"
12' 4"
101"
75 gal.
78 gal.
39 gal.
16'
2490 lb.
15617 lb.
12617 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
78 gal.
78 gal.
12' & 17'
2283 lb.
15337 lb.
12337 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
78 gal.
78 gal.
12' & 17'
2619 lb.
15846 lb.
12846 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
89 gal.
39 gal.
19'
2202 lb.
15272 lb.
12272 lb.
3000 lb.
42' 1"
12' 4"
101"
75 gal.
89 gal.
39 gal.
19'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.

Features & Options

Print
  • 101" wide body
  • All welded aluminum frame superstructure
  • 5/8" tongue and groove plywood floor
  • R-40 Residential 5" radius wood truss roof
  • 6'6" height slides (living area slides)
  • (5) heat ducts out of traffic areas
  • Snap-in ceiling molding - no staples or tape
  • 12V heat pads on all holding tanks
  • R-38 floor insulation
  • R-40 roof insulation
  • R-11 sidewall insulation
  • Vacuum Bonded Walls
  • E-Z Flex® Dexter® Axles E-Z Lube® Axles with Nev-R-Adjust® brakes (Compass)
  • 16" wheels with nitro fill tires
  • Large frameless tinted windows throughout (Columbus)
  • Hidden hinges
  • Dovetail constructed reinforced doors and drawers with upgraded hardware
  • Upgraded crack/mold/mildew-resistant flooring
  • Upgrade true solid surface countertops bath/kitchen (Compass - Kitchen only)
  • LED lights
  • Residential crown molding throughout unit
  • Solid wood slide fascia
  • 24 ounce carpet
  • Roller night shades (Columbus)
  • Solid wood steps (Columbus)
  • Central vacuum system
  • Large entry closet for jacket/shoe storage
  • Slam latches on all storage doors
  • Magnetic compartment door holds
  • 2-tone aluminum wheels
  • 2-tone wheel well skirting (Columbus)
  • Painted fiberglass front cap
  • 2 exterior color choices with champagne metal skirting (cream, white) (Columbus)
  • Heated utility convenience center
  • Black tank flush
  • Outside AM/FM/Bluetooth receiver with USB port
  • Electric rear stabilizer jacks
  • Outside shower
  • (3) 20-lb. LP tanks with auto switch (EZ replacement) (Columbus)
  • Full view entry door with window and screen door (Columbus)
  • Quick battery disconnect
  • Power awning with LED lighting
  • 7000 lb. axles (all models)
  • Crank down spare tire
  • Storage rack in front compartment
  • Power w/USB charging residential theater seating w/storage
  • Bi-fold 80” Sleeper sofa (per model)
  • Solid Wood entertainment and end table tops (Columbus)
  • Residential high end dining chairs with storage
  • Laundry hamper (most models)
  • Wall mounted/framed TV cabinet (Columbus)
  • Solid wood dresser top (Columbus)
  • Pillow top mattress
  • French mirrored sliding closet doors
  • High end bedspread/pillows
  • Upgrade 8 cu. ft. refrigerator with adjustable temp settings and raised panel doors
  • 50" LED TV with sound bar and DVD player
  • 10 gal. water heater with quick recovery
  • Washer/dryer prep
  • Full system water purifier
  • 30" residential microwave
  • 15,000 BTU high output Coleman Serenity A/C
  • 35,000 BTU furnace
  • Pull out pantry (Columbus)
  • Storage for sink covers (some models)
  • Recessed solid surface sink covers
  • Residential under counter storage
  • Recessed glass range cover (Compass)
  • Residential glass backsplash
  • Additional lighting above sink area
  • Large double bowl stainless steel sink (Columbus)
  • Single lever faucet w/pull out sprayer
  • Trash can with dedicated storage (some models)
  • 60" x 30" one-piece fiberglass shower with seat and built-in shelves for toiletries (Columbus)
  • 60" x 30" 2 piece shower surround (Compass)
  • Solid-surface counter top (Columbus)
  • 3-speed power vent
  • Porcelain toilet
  • Towel rack built into door (Columbus)
  • 13,500 BTU Coleman Serenity bedroom A/C (std. 386)
  • Mor/Ryde pin box
  • Electric fireplace
  • 3 slide toppers (297,298,329,366,383,386) (Columbus)
  • 4 slide toppers (374,377,378) (Columbus)
  • 5 slide toppers (389) (Columbus)
  • 6 Point Hydraulic Level Up (required on 1492PKG)
  • Stackable washer/dryer (Columbus)
  • Dual pane windows (Columbus)
  • Keyless entry door lock
  • MCD night roller shades (Compass)
  • MCD UV reflective day shades (Living Room only) (Columbus)
  • 32" bedroom LED TV with Sound Bar (Columbus)
  • 32” bunkroom LED TV (374,377, 378) (Columbus)
  • Bedroom Maxx Fan w/Rain HOOD (N/A w/Bedroom A/C)
  • Kitchen Maxx Fan w/Rain HOOD (forced 386FK)
  • 20 cu. ft. residential refrigerator with inverter
  • 18 cu. ft gas electric refrigerator
  • King bed
  • Memory Foam Mattress
  • Bike rack (N/A with rear cap) (Columbus)
  • Fiberglass rear cap (N/A with bike rack) (N/A 389FL)(Columbus)
  • Generator prep (Columbus)
  • 5.5 Generator install (includes gen prep) (Columbus)
  • Wood-look floor
  • Tile-look floor
  • Wireless back up camera
  • Metal wrapped awning
  • Goodyear H rated tires with upgraded rims
  • 200 Watt Solar Panel (installed) w/2 Batteries
  • Dyson Air Purification System
  • Frameless windows
  • Full system water purifier
  • 50" LED TV
  • Sound Bar
  • Battery disconnect
  • Exterior AM/FM/ iPOD/CD w/2 Speakers
  • Cherry hardwood slide out fascia
  • 2 tone aluminum wheels
  • 1-piece fiberglass shower
  • G-rated Tires
  • 12 volt heat pads on tanks
  • LED awning lights
  • Mor/ryde Strut Assist Entry Steps
  • Mor/ryde CRE/3000 Suspension
  • Syphon 360 vent covers
  • MCD Night Roller Shades
  • Friction Hinge Full Length Window Main Entry Door
  • Go Power Solar Prep
  • MyRV System
  • Columbus 366RL, 378MB, 383FB, 386FK, 387FK, 389FL Floorplans ONLY
  • Zero carpet interior
  • Deluxe Gel Memory Foam Mattress
  • Upgrade stone backsplash
  • Bose premium soundbar
  • Shiplap island
  • Induction cooktop
  • Wine fridge
  • Tankless water heater
  • Heated Towel Bar
  • MorRyde hitch
  • Bike hitch
  • MorRyde equalizers
  • Dishwasher
  • Waste Management
  • 1492 Slide Fascia
  • WiFi Booster w/4G LTE
  • Power Cord Reel
  • Live Edge Dinette Table
  • Residential Dinette Chairs (2)
  • Outside TV/Bracket
  • Drop Frame Floorplan (N/A 386, 389)
  • Two Tone Painted Front Cap
  • Fiberglass Rear Cap (N/A 389)
  • 1492 Graphics Package
  • 1492 Pillow
  • Full System Water Purifier
  • 50" LED TV
  • Sound Bar
  • Battery disconnect
  • AM/FM/iPod/CD with 2 Exterior Speakers
  • Cherry hardwood slide out fascia
  • 2 tone aluminum wheels
  • G-rated Tires
  • 12V heat pads on all holding tanks
  • LED awning lights
  • Syphon 360 vent covers
  • Pleated day/night shades
  • 4 step entry
  • Friction hinge entry door
  • Go Power Solar Prep
  • Pull down faucet


Virtual Tours

297RK

297RKC

298RLC

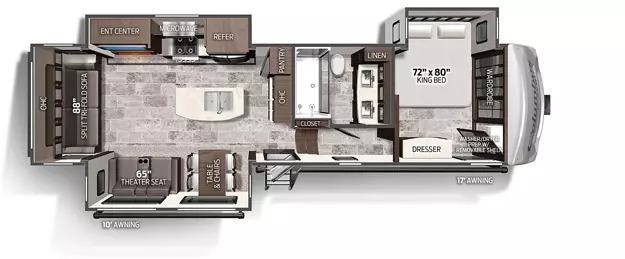

329DV
